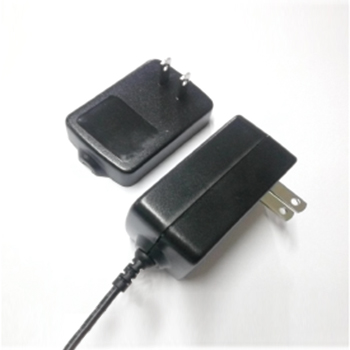

YMC18-XY SERIES

plug-in power supply

Features

  • Universal input voltage
  • Single output
  • Optional output connectors
  • Short circuit poetection
  • High efficiency & reliability
  • Compact low profile package
  • One year warranty

SAFETY AGENCY APPROVALS



Specifications: YMC18 Series:
Input voltage 100~240 VAC
Input frequency 47~50 to 60~63 Hz
Input current 1.0A(Max)
Safety ground leakage current 0.25mA max @ 240VAC 50Hz
Output voltage See rating chart (±5% tolerance)
Output current See rating chart
Output power range 18 watts Max
Ripple 1% peak to peak maximum
Protection requirements Over Voltage、Over current、Short circuit
Temperature coefficient
Operating temperature 0℃~+40℃
Storage temperature 20℃~+80℃
Relative humidity 10% to 90% non-condensing
Derating Derated from 100% at +40℃ linearly to 50% to 70℃
Efficiency V
Ling regulation <2.0%
Load regulation <5.0%
Insulation resistance 50 Mohm minimum from output to ground
Inrush current 15 AMPS @ 115 VAC,or 30AMPS @ 230VAC AT 25℃ cold start
Withstand volatge 4242VDC from input to output
EMI requirements EN55022/FCC Part 15
Safety requirements CUL、 CE
Warranty 1 year
